Products

Standard Cells

Release time:

2023-07-14 16:18

Product features:

►Product differentiation, with 53Ah, 100Ah, 150Ah different types of cells, including IFP39148100-53Ah and IFP54220118-150Ah cells developed for high-voltage stacking and small-scale industrial and commercial energy storage respectively; IFP54220118-100Ah with ultra-low height design, suitable for 2U standard pull-out type energy storage application scenario needs, while derived to wall-mounted household energy storage field.
►High safety and reliability, has obtained UL, IEC and other international certifications；
►High safety and reliability, has obtained UL, IEC and other international certifications;
►Highly adaptable to the environment, can be discharged at -20°C to 65°C；
►Good storage performance, high temperature storage at 60°C for 7 days, capacity maintenance ratio >95%;
►Long battery life and warranty period；
►100% process traceability, empowering every battery cell；
►100% automated production with high precision and efficiency to ensure the consistency of the battery cells.

Application:

Household energy storage, commercial and industrial energy storage, RV power, network site energy, etc.

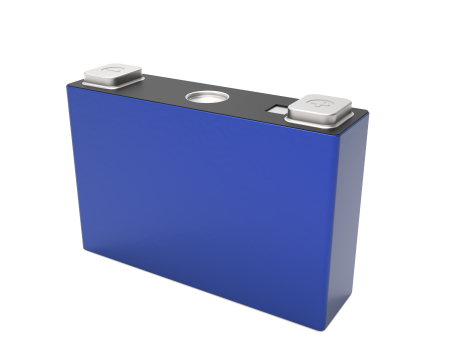

IFP39148100-53Ah

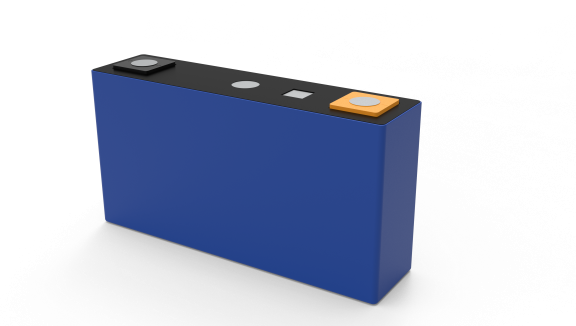

IFP5422078-100N/100H

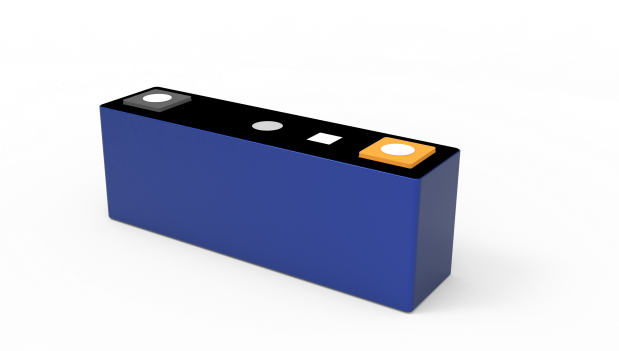

IFP54220118-150Ah

Technical specifications:

Item		IFP39148100-53Ah	IFP5422078-100N	IFP5422078-100H	IFP54220118-150Ah
Battery type		LFP	LFP	LFP	LFP
Dimension	Height	100±0.5 mm（Containing pole）	79±0.5 mm（Containing pole）	79±0.5 mm（Containing pole）	118±0.5 mm（Containing pole）
	Width	148±0.5mm	220±0.5mm	220±0.5mm	220±0.5mm
	Thickness	39±0.5mm	54±0.5mm	54±0.5mm	54±0.5mm
Battery weight		1.10±0.15Kg	1.90±0.15Kg	1.90±0.15Kg	3.0±0.15Kg
AC internal resistance（AC 1KHz）		0.30～0.70mΩ	0.30～0.65mΩ	0.20～0.60mΩ	0.20～0.60mΩ
Rated voltage		3.2V	3.2V	3.2V	3.2V
Rated capacity		53Ah	100Ah	100Ah	150Ah
Standard charging method		CC-CV,0.5C,3.65V,2.65A cut-off	CC-CV,0.5C,3.65V,5A cut-off	CC-CV,0.5C,3.65V,5A cut-off	CC-CV,0.5C,3.65V, 7.5A cut-off
Charge current	Standard charge current	26.5A	50A	50A	75A
Charge current	Max. charge current	53A	100A	100A	150A
Discharge	Cut-off voltage	T＞0℃ 2.5 V，T≤0℃ 2.0V	T＞0℃ 2.5 V，T≤0℃ 2.0V	T＞0℃ 2.5 V，T≤0℃ 2.0V	T＞0℃ 2.5 V，T≤0℃ 2.0V
Discharge	Max. continuous discharge current	53A	100A	100A	150A
Discharge capacity	Standard discharge（0.5C）	≥53Ah	≥100Ah	≥100Ah	≥150Ah
Discharge capacity	Multiplier discharge（1C）	≥53Ah	≥100Ah	≥100Ah	≥150Ah
Cycling life		≥6000 times，0.5C/1C，25℃	≥3000 times，0.5C/1C，25℃	≥6000 times，0.5C/1C，25℃	≥6000 times，0.5C/1C，25℃
