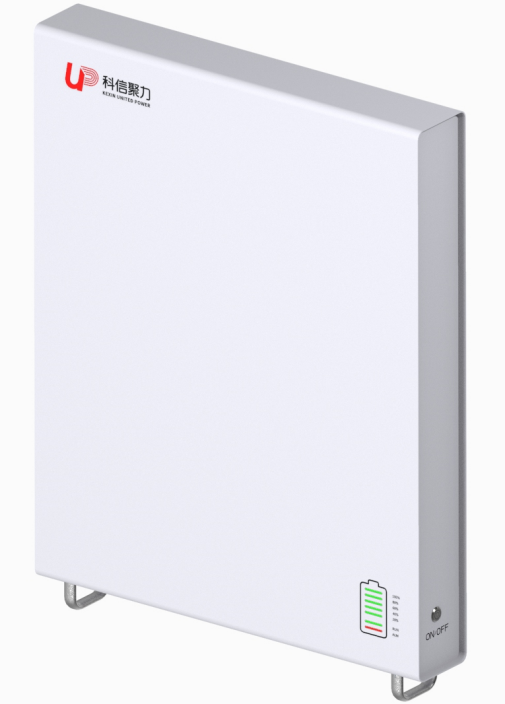

Ultra-Thin Wall-Mounted Household Storage Blade-P1

Release time:

2023-07-14 16:44

Product features:

►Ultra-thin wall-mounted household storage design, beautiful and atmospheric, perfectly integrated into the home environment；
►Built-in highly stable BMS system with protection functions for overcharge, overdischarge, overcurrent, high and low temperature, etc.
►LED strip for real-time display of battery capacity and battery status;
►Low resistance MOS tubes are used for the main negative circuit control；Automatic code assignment function, supporting up to 15 groups in parallel, to cope with large power demand environment
►Adaptable to the main brands of inverters on the market, providing users with more choices；
►The power interface uses universal OT terminal connections, reducing the limitations of using side connectors

Application:

Household energy storage、 commercial and industrial energy storage

Technical specifications:

NO.	Item	Parameters
1	Product model	UPPF16100B
2	Rated voltage	51.2V
3	Workting voltage range	44.8~58.4V
4	Rated capacity	100Ah
5	Rated charge capacity	5.12kWh
6	Combination method	1P16S
7	Charge voltage	56V
8	Charge current	Continuous: 50A Maximum: 80A
9	Discharge current	Maximum continuous current: 100A
10	Factory voltage	50.4V - 53.6V
11	Self-discharge rate	≤2%/month
12	Equalization method	Passive equalisation
13	Parallel mode	Automatic coding
14	Charge temperature	0°C ~ + 55°C
15	Discharge temperature	-20°C ~ + 60°C
16	Protection level	IP2X (IP65 optional)
17	Communication method	CAN/RS485
18	Dimension	67054090±1mm
19	Weight	48±2KG
20	Cycling life	＞6000cyc@80%DOD,25℃,0.5C
21	Certification	UN38.3、CE、IEC62619、ROHS
