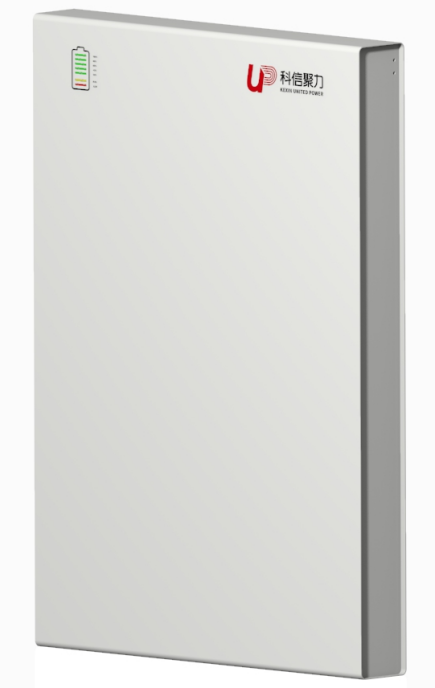

Ultra-Thin Wall-Mounted Household Storage Blade-P2

Release time:

2023-07-14 16:58

Product Features:

  • Ultra-thin wall-mounted household storage design, beautiful and atmospheric, perfectly integrated into the home environment;
  • Built-in highly stable BMS system with protection functions for overcharge, overdischarge, overcurrent, high and low temperature;
  • LED strip for real-time display of battery capacity and battery status;
  • Low resistance MOS tubes are used for the main negative circuit control;
  • Automatic code assignment function, supporting up to 15 groups in parallel, to cope with large power demand environment;
  • Adaptable to mainstream brands of inverters on the market, providing users with more choices;
  • Different parts for wall and floor mounting according to different installation methods.

Application:

Household energy storage、 commercial and industrial energy storage



Technical specifications:

NO.

 Item

Parameters

1

Product model

 UPPF16200A

2

Rated voltage

51.2V

3

Workting voltage range

44.8~58.4V

4

Rated capacity

200Ah

5

Rated charge capacity

10.24kWh

6

Combination method

2P16S

7

Charge voltage

56V

8

Charge current

Continuous: 100A Maximum : 160A

9

Discharge current

Maximum continuous current: 200A

10

Factory voltage

50.4V - 53.6V

11

Self-discharge rate

≤2%/month

12

Equalisation method

Passive equalisation

13

Parallel mode

Automatic coding

14

Charge temperature

0℃〜+50℃

15

Discharge temperature

-20℃〜+ 60℃

16

Protection level

IP65

17

Communication method

CAN/RS485

18

Dimension

700*980*100±1mm

19

Weight

95±2KG

20

Cycling life

6000cyc@80%DOD,25℃,0.5C

21

Certification

UN38.3、CE、IEC62619、ROHS
