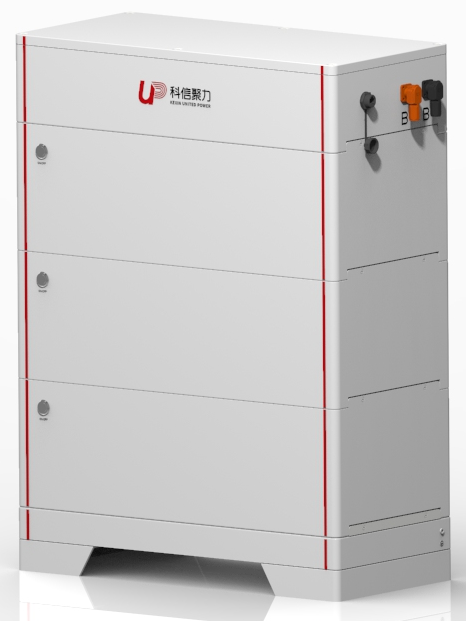

Low Voltage Stacked Household Storage Pandora-P
Release time:
2023-07-14 17:02
|
Product features:
Application: Household energy storage、 commercial and industrial energy storage |
|
Technical specifications:
|
Basic parameters |
|||||
|
Product model |
UPPF16100E-LP2 |
UPPF16100E-LP3 |
UPPF16100E-LP4 |
UPPF16100E-LP5 |
UPPF16100E-LP6 |
|
|
|
|
|
|
|
|
Number of battery packs |
2 |
3 |
4 |
5 |
6 |
|
Rated voltage |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Workting voltage range |
44.8~58.4V |
||||
|
Rated Capacity |
200Ah |
300Ah |
400Ah |
500Ah |
600Ah |
|
Rated charge capacity |
10.24kWh |
15.36kWh |
20.48kWh |
25.6kWh |
30.72kWh |
|
Charge voltage |
56V |
||||
|
Maximum charge current |
100A |
150A |
200A |
250A |
300A |
|
Maximum discharge current |
200A |
300A |
|||
|
Self-discharge rate |
≤2%/month |
||||
|
Equalisation method |
Passive equalisation |
||||
|
Charging temperature |
0℃〜+ 55℃ |
||||
|
Discharge temperature |
-20℃〜+ 60℃ |
||||
|
Protection level |
IP54 |
||||
|
Communication method |
CAN/RS485 |
||||
|
Dimension |
620*298*628 |
620*298*829 |
620*298*1030 |
620*298*1232 |
620*298*1433 |
|
Weight |
110kg |
155kg |
200kg |
245kg |
290kg |
|
DOD |
≤90% |
||||
|
Cycling life |
＞6000cyc@80%DOD,25℃,0.5C |
||||
|
Certification |
UN38.3、CE、IEC62619、ROHS |
||||
