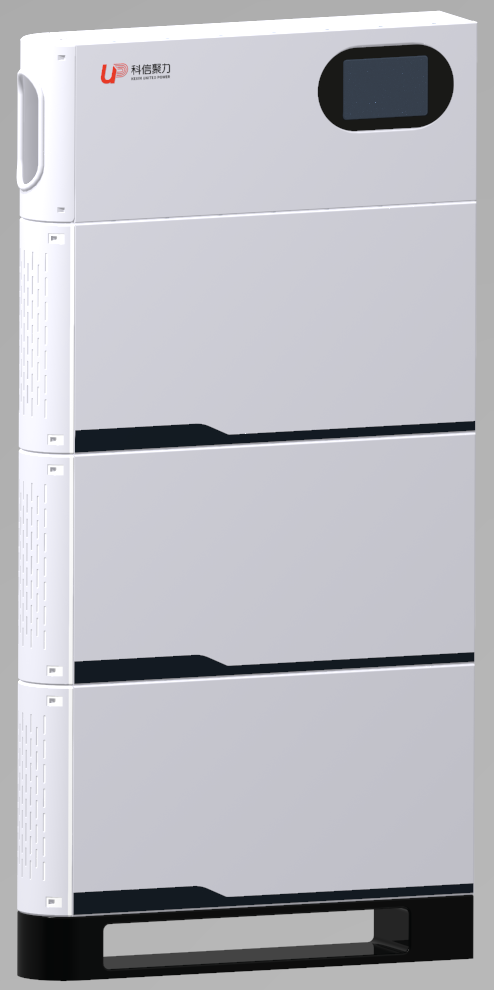

High Voltage Stacked Household Storage Blade-S

Release time:

2023-07-14 17:05

Product Features:

►Ultra-thin wall-mounted design, only 140mm thick, to avoid taking up too much space in the room ;
►Modular design between packs, quick-plug and quick-draw connectors for easy installation;
►Wide voltage PDU design, can meet 3~9 battery packs in series combination;
►Different combinations of 12~36kWh charge capacity to cope with different usage scenarios;
►Built-in WIFI and wireless 4G module expansion for remote upgrade；
►High brightness industrial display with real-time battery information and the ability to view system status:
►BMS multi-protocol, capable of adapting to mainstream inverter brands on the market；
►Tier 2 architecture and automotive-grade BMS for stable system operation.

Application:

Household energy storage、 commercial and industrial energy storage

Technical specifications:

Basic parameters
Product model	UPPF2453A-HS3	UPPF2453A-HS4	UPPF2453A-HS5	UPPF2453A-HS6	UPPF2453A-HS7	UPPF2453A-HS8	UPPF2453A-HS9

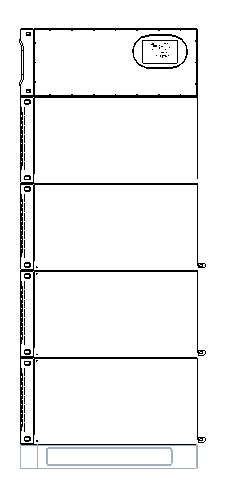

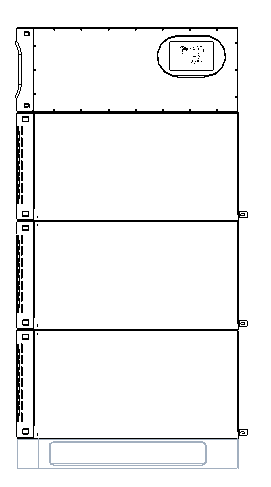

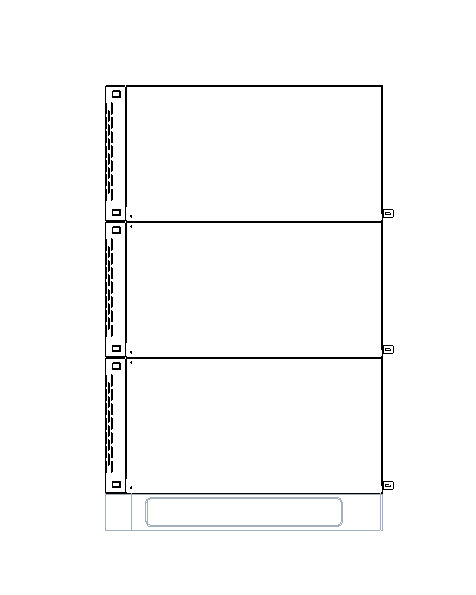

Combination diagram
Number of PDUs	1
Number of battery modules	3	4	5	6	7	8	9
Rated voltage	230.4	307.2V	384V	460.8V	537.6V	614.4V	691.2V
Working voltage range	201.6~262.8V	268.8~350.4V	336~438V	403.2~525.6V	470.4~613.2	537.6~700.8V	604.8~788.4V
Rated capacity	53Ah
Rated charge capacity	12.21kWh	16.28kWh	20.35kWh	24.42kWh	28.49kWh	32.56kWh	36.63kWh
Combination method	1P72S	1P96S	1P120S	1P144S	1P168S	1P192S	1P216S
Charge voltage	252V	336V	420V	504V	588V	672V	756V
Charge current	Continuous: 25A Maximum: 50A
Discharge current	Maximum continuous current: 50A
Self-discharge rate	≤2%/month
Equalization method	Passive equalisation
Parallel mode	Automatic coding
Charge temperature	0°C ~ + 55°C
Discharge temperature	-20°C ~ + 60°C
Protection level	IP65
Communication method	CAN/RS485/WIFI/4G/Bluetooth
Dimension	1460735140	1820735140	1460735140 820735140	1460735140 1180735140	1820735140 1180735140	2180735140 1540735140	1460735140 1180735140 1180735140
Weight	135kg	175kg	220kg	263kg	303kg	343kg	383kg
DOD	≤90%
Cycling life	＞6000cyc@80%DOD,25℃,0.5C
Certification	UN38.3、CE、IEC62619、ROHS
