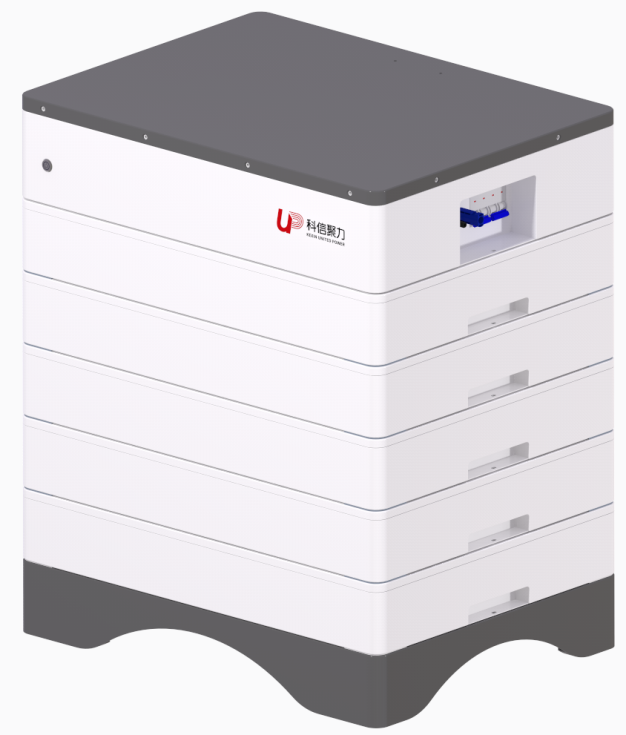

High Voltage Stacked Household Storage Pandora-S

Release time:

2023-07-14 17:10

Product features:

►Modular design between cases, quick-plug and quick-draw connectors for easy installation;
►Wide voltage PDU design, can meet 5~8 battery packs in series combination；
►Different combinations of 25-40kWh charge capacity to cope with different usage scenarios;
►Built-in WIFI and wireless 4G module expansion for remote upgrades；
►High power systems for special industrial inverter scenarios；
►BMS multi-protocol, capable of adapting to the mainstream inverter brands on the market；
►Tier 2 architecture and automotive-grade BMS for stable system operation.

Application :

Household energy storage、 commercial and industrial energy storage

Technical specifications:

Product model	UPPF16100F-HS5	UPPF16100F-HS6	UPPF16100F-HS7	UPPF16100F-HS8

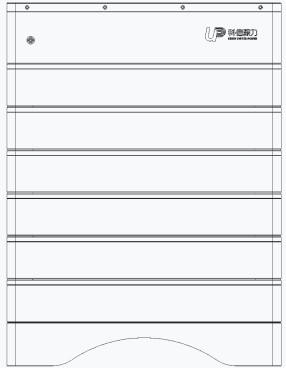

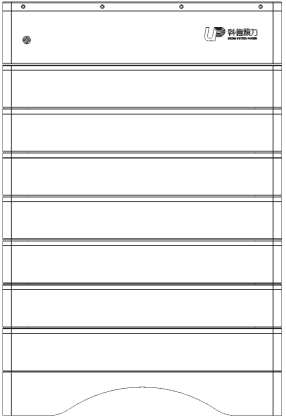

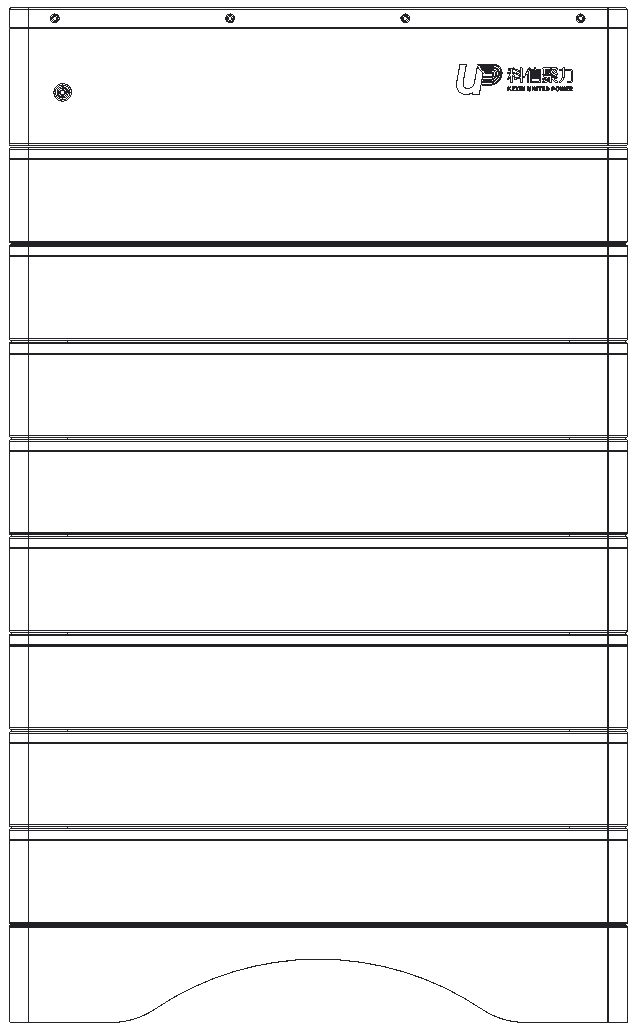

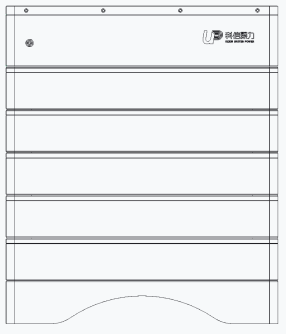

Combination diagram
Number of bus control box	1
Number of battery modules	5	6	7	8
Rated voltage	256V	307.2V	358.4V	409.6V
Operating voltage range	224~292V	268.8~350.4V	313.6~408.8V	358.4~467.2V
Rated capacity	100Ah
Rated charge capacity	25.6kWh	30.72kWh	35.84kWh	40.96kWh
Combination method	1P80S	1P96S	1P112S	1P128S
Charge voltage	280V	336V	392V	448V
Charge current	Duration：30A Maximum：70A
Discharge current	Maximum continuous current：70A
Self discharge rate	≤2%/ month
Equilibrium mode	Passive equalisation
Charge temperature	0℃〜+ 55℃
Discharge temperature	-20℃〜+ 60℃
Protection level	IP54
Communication method	CAN/RS485/WIFI/4G/Bluetooth
Dimension	635480735	635480835	635480935	6354801035
Weight	275kg	320kg	365kg	410kg
DOD	≤90%
Cycling life	＞6000cyc@80%DOD,25℃,0.5C
Certification	UN38.3、CE、IEC62619、ROHS
