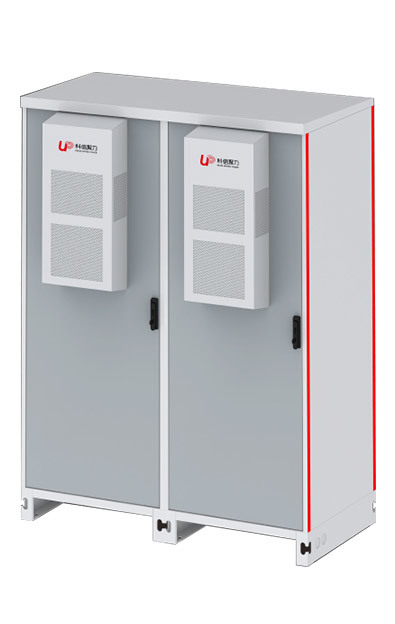

Outdoor cabinet-type energy storage system
Release time:
2025-01-15 15:24
| Product Features:
Application Fields: Integrated energy storage for photovoltaic and charging, industrial and commercial energy storage |
|
Technical Specifications:
| Project | Parameters | |
| System Parameters | ||
| Product Model |
UPSF3061A | UPSF60138A |
| Maximum AC Output Power | 30KW | 60KW |
| Maximum AC Input Power | 30KW | 60KW |
| System Capacity Range | 61.44kWh | 138.24kwh |
| Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
| Protection Level |
IP55 | IP55 |
| Cabinet Size (W x D x H) | 750X950X2000mm | 750*950X2000mm*2 sets |
| Inverter Technical Parameters | ||
| AC Voltage |
400Vac Three-phase | 400Vac Three-phase |
| Battery Voltage Range |
500-900V | 500-900V |
| Maximum Charge and Discharge Current |
100A | 200A |
| Rated Frequency | 50/60Hz | 50/60Hz |
| Battery Technical Parameters | ||
| Rated Voltage |
614.4V | 691.2V |
| Rated Capacity | 100Ah | 200Ah |
| Cycle Life |
≥6000 | ≥6000 |
| Single Battery Module Voltage |
51.2V | 25.6V |
| Maximum Charge and Discharge Current |
100A | 150A |
| Battery Connection Method |
12 battery modules in series |
27 battery modules in series |
