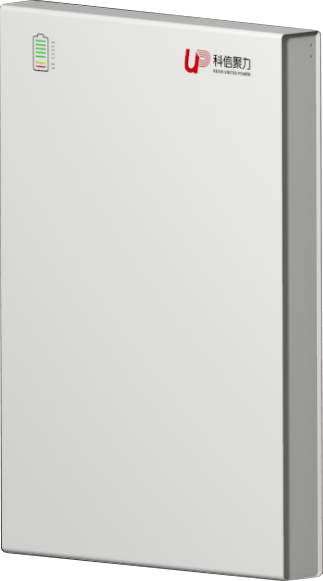

Ultra-thin wall-mounted and floor-standing home storage.
Release time:
2025-01-15 16:58
| Product Features:
Application Fields: Home energy storage, commercial energy storage |
|
Technical Specifications:
| Item | Parameter |
| Product Model | UPPF16200A |
| Rated Voltage |
51.2V |
| Operating Voltage Range | 44.8-58.4V |
| Rated Capacity |
200Ah |
| Rated Charge Amount |
10.24kwh |
| Combination Method |
2P16S |
| Charging Voltage |
56V |
| Charging Current |
Continuous: 100A Maximum: 160A |
| Discharge Current |
Maximum Continuous Current: 200A |
| Factory Voltage |
50.4V-53.6V |
| Self-discharge Rate |
≤2%/month (month) |
| Balancing Method |
Passive Balancing |
| Parallel Operation Method | Automatic Coding |
| Charging Temperature | 0℃-+50℃ |
| Discharge Temperature | -20℃~+60℃ |
| Protection Level |
IP65 |
| Communication Method |
CAN/R5485 |
| Dimensions |
700*980*100±1mm |
| Weight |
95±2KG |
| Cycle Life | >6000cyc@80%DOD，25℃，0.5C |
| Certification |
UN38.3, CE, IEC62619, ROHS |
